21M-03-21110
Cooler A ........................冷却器总成
1 DZAK0001-
1 21M-03-21110
Core Assembly .....................芯片
组
件
1 DZAK0001-
2 21M-03-21120
Core Assembly .....................芯片
组
件
1 DZAK0001-
3 01010-81050
Bolt ..................................螺栓 4 DZAK0001-
4 01643-31032
Washer ................................垫圈
4 DZAK0001-
5 207-03-75590
Plate ...................................板
8 DZAK0001-
6 195-03-41380
Cushion .............................减振垫 4 DZAK0001-
7 416-03-11170 Cap .....................................盖 2
DZAK0001-
8 205-03-62660 Plug ..................................堵塞 2 DZAK0001-
9 07000-11007
• O-ring .............................0形圈
1 DZAK0001-
10 21M-03-21670
Hose ..................................软管
2 DZAK0001-
11 20Y-03-11330 Clip ..................................管夹
2 DZAK0001-
12 209-03-41280
Cushion .............................减振垫 4 DZAK0001-
13 21M-03-21571
Hose ..................................软管
2 DZAK0001-
14 07289-00070 Clamp .................................卡箍 8
DZAK0001-
15 14X-01-35650 Clip ..................................管夹
2 DZAK0001-
16 01010-81030
Bolt ..................................螺栓 2 DZAK0001-
17 01643-31032
Washer ................................垫圈
2 DZAK0001-
18 21M-03-21131

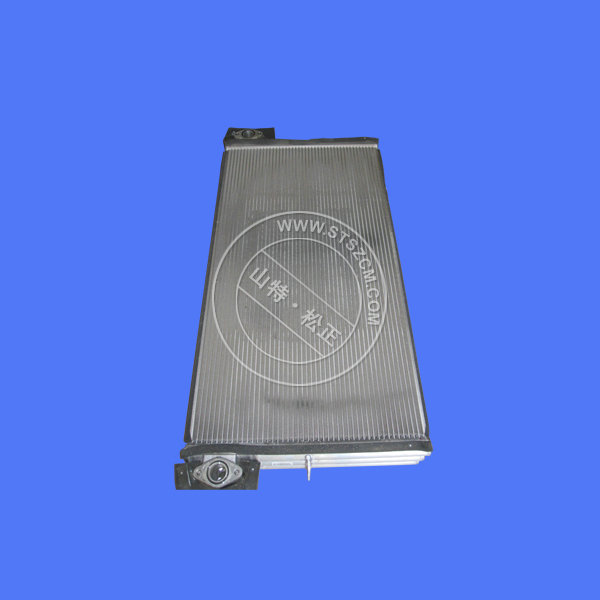

Oil Cooler Assembly .............油冷却组
件
1 DZAK0001-
19 01010-81025
Bolt ..................................螺栓 8 DZAK0001-
20 01643-31032
Washer ................................垫圈
8 DZAK0001-
21 21M-03-21350
After cooler Assembly ...........中冷器组件
1 DZAK0001-
22 01010-81225
Bolt ..................................螺栓 6 DZAK0001-
23 01643-31232
Washer ................................垫圈
6 DZAK0001-
24 21M-03-21181
Frame .................................车架 1 DZAK0001-
25 01010-81025
Bolt ..................................螺栓 2 DZAK0001-
26 01643-31032
Washer ................................垫圈
2 DZAK0001-
27 21M-03-21191
Frame .................................车架 1 DZAK0001-
28 01010-81025
Bolt ..................................螺栓 2 DZAK0001-
29 01643-31032
Washer ................................垫圈
2 DZAK0001-
30 21M-03-21211
Bracket ...............................支架 1 DZAK0001-
31 01010-81040
Bolt ..................................螺栓 4 DZAK0001-
32 01643-31032
Washer ................................垫圈
4 DZAK0001-
33 21M-03-21221
Bracket ...............................支架 1 DZAK0001-
34 01010-81025
Bolt ..................................螺栓 4 DZAK0001-
35 01643-31032
Washer ................................垫圈
4 DZAK0001-
36 22B-03-12590
Cushion .............................减振垫 4 DZAK0001-
